Coating Thickness Gauge

QS Metrology brings you world class coating thickness gauges from the market leader Phynix, Germany. We offer a wide range of models for Ferrous as well as Non-ferrous metal substrates that meet various measurement needs. These gauges provide very high accuracy and performance along with excellent repeatability and reliability. A broad range of probes that suits different measurement applications are also available.

Please browse through our different models and specifications to identify the model that suit your requirement or please feel free to contact us, so that our technical team can assist you.

• Surfix®PRO X
• Surfix® EX / Surfix® SX

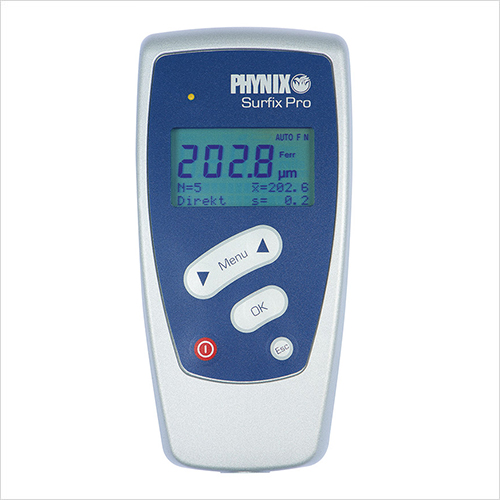

• Surfix® S / Surfix® Pro S

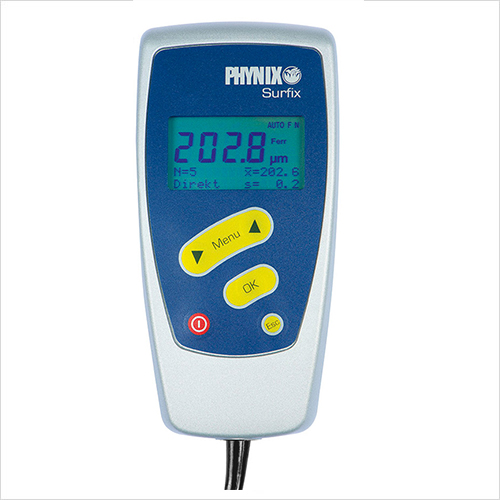

• Surfix® E-Family

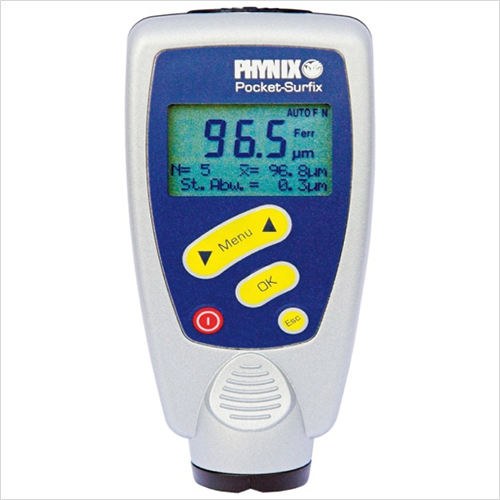

• Pocket - Surfix®X

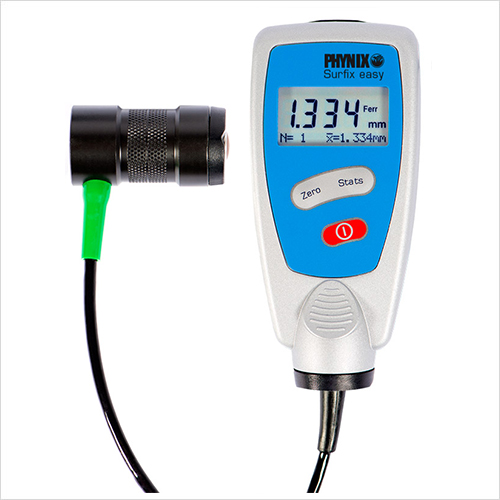

• Surfix® Easy

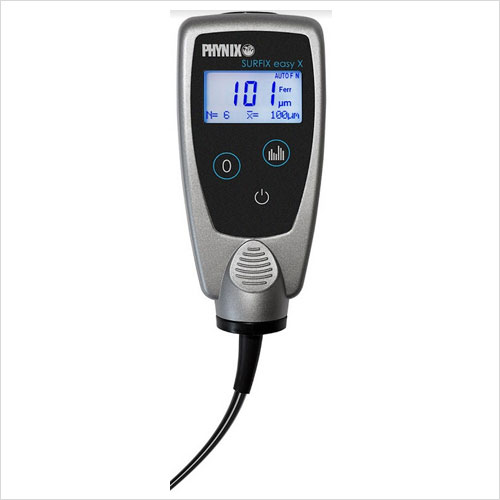

• Surfix® Easy X

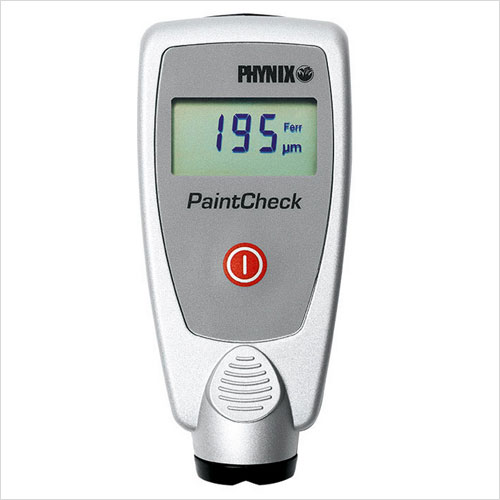

• Paint Check

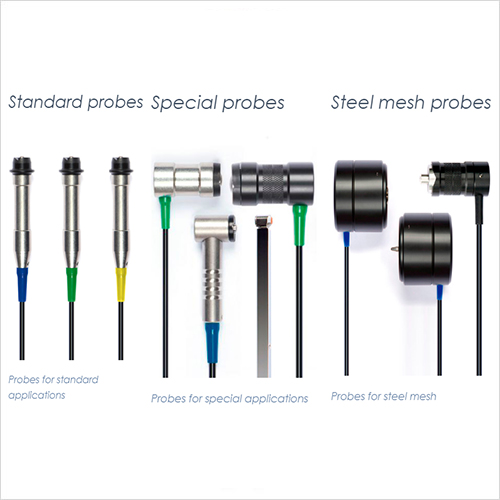

• Special Purpose Gauges

Ask for Price

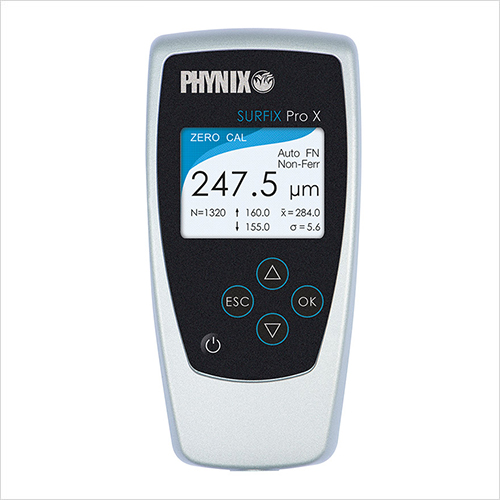

TECHNICAL DATA	Surfix®PRO X
Design	Separate, exchangeable probes
Probes	FN 1.5 Optional all standard probes, angled probes and special probes (see separate brochure)
Measurement Range	Depending on probe upto 30mm
Accuracy	Depending on probe upto ±(0.7µm + 1% of reading)
Resolution	0.1µm or < 0.2% of reading
Carbide metal tips	yes
Calibration method	Works calibration, zero ,one foil, two foil and CTC calibration

Ask for Price

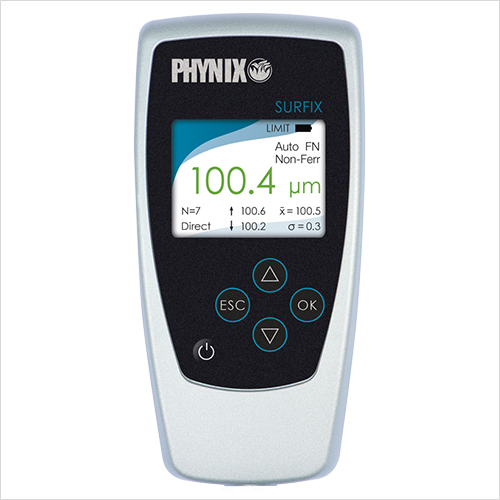

TECHNICAL DATA	Surfix® SX	Surfix® EX
Specification	For connection of exchangeable, separate probes	External, fixed probes
Measurement Range	Depending on probe, upto 30mm	0-1.500µm
Accuracy	Depending on probe upto ± (o.7µm + 1% of reading)	± (1µm + 1% of reading)
Resolution	0.1µm or < 0.2 % of reading (with standard probe)
Calibration Memory	Works calibration, zero calibration, one foil calibration; zero offset

Ask for Price

TECHNICAL DATA	Surfix® Pro S	Surfix® S
Design	Separate, exchangeable probe
Probes	FN 1.5, optional standard probes, angled probes and special probes (refer to probe brochure)
Range	Depending on probe up to 30 mm
Accuracy	Depending on probe up to ± (0.7µm + 1 % of reading)
Calibration Memory	Yes	-
Memory	10,000 Readings	Max. 200 Readings

Ask for Price

TECHNICAL DATA	Surfix®E-Family
Design	External, fixed probe
Probes	FN 1.5, F 1.5, N 1.5
Measurement Range	0 - 1,500µm
Accuracy	depending on probe up to ±(0.7µm + 1 % of reading)
Resolution	0.1µm or < 0.2 % of measurement reading
Calibration	works-, zero- and one-foil-calibration

Ask for Price

TECHNICAL DATA	Surfix®E-Family
Method of Measurement	F-Mode (magentic-inductive method) for iron and steel N-Mode (eddy-current method) for non-ferrous metals
Measurement Range	0 - 1,500µm
Accuracy	±(1µm + 1 % of reading)
Resolution	0.1µm or < 0.2 % of measurement reading
Display	LED-Backlight, 4 digit, alphanumeric, digit height 8 mm
Calibration Method	Works calibration, zero and foil calibration Zero-offset: addition or subtraction of a constant value

Ask for Price

TECHNICAL DATA	Surfix® easy I-FN / I-F	Surfix® easy E-FN / E-F
Version	Integrated probe	External, fixed probe
Measurement range iron/steel	0 - 3,500 µm
Meas. range non-ferrous metals	0 - 3,000 µm
Accuracy	± 2 µm or 2 % of reading
Resolution	0 - 1,000 µm: 1 µm | 1,000 - 2,500 µm: 2 µm | 2,500 - 3,500 µm: 5 µm

Ask for Price

TECHNICAL DATA	Surfix® easy X I-FN / I-F	Surfix® easy X E-FN / E-F
Version	Integrated probe	External, fixed probe
Measurement range iron/steel	0 - 3,500 µm
Meas. range non-ferrous metals	0 - 3,000 µm
Accuracy	± 2 µm or 2 % of reading

Ask for Price

Range

• Steel/Iron (F): 0 – 2000 µm (0 – 80mils)
• Aluminium (N): 0 – 2000 µm (0 – 80mils)

Accuracy:

• ± (5 µm + 5% of reading)
• ± (0.5mils + 5% of reading)

Resolution:

• 0 – 500 µm: 5 µm
• 500 – 1000 µm: 10 µm
• 1000 – 2000 µm: 25 µm
