3D CMM

Bridge type and Production CMM from the leader - Zeiss

Zeiss is the technology leader in CMMs.
Zeiss has built CMMs for more applications than any other 3d CMM manufacturer-with thousands of 3d CMMs currently in service around the globe. And they are committed to continuing innovation, spending at least ten percent of CMM revenues on research and development every year.

Zeiss has products to fit your application.
From the affordable Vista series for small applications to the revolutionary Prismo Vast designed for the shop floor, Zeiss has a complete line of CMMs that can handle any application.

Zeiss has unequaled quality.
No matter which Zeiss CMM you choose, you are guaranteed to get the quality product you would expect from Zeiss. Their CMMs are manufactured in our ISO 9001 certified facilities in Germany and the United States.

Zeiss puts the customer first.
Zeiss's customer support system is second to none. Centers are maintained for training, service, parts and technical support throughout India

Zeiss CMMs are an excellent value.
The best measuring instruments in the world are at your service. Whether you need basic measurement at a basic price or the most sophisticated quality control on the planet, the world wide standard is Zeiss.

Ask for Price

Entry level Bridge type CMM from the leader - Zeiss

Spectrum bridge-type CMM is an entry level CMM that meets the market’s demand for an economical model, with Carl Zeiss machine, sensor and software technology. This model is designed for general measurement, and can be configured to meet your specific needs.

Key Features

• Carl Zeiss RDS-C5 articulating probe holder with our XDT multi-point sensor or Renishaw TP20 touch-trigger. Measure angled features in difficult to reach locations. The articulating probe holder offers +/- 180 degrees of bi-directional rotation and permits indexing steps of 5 degrees reaching 5,184 angular positions for either sensor.
• SPECTRUM can also be configured with the XDT directly for general prismatic applications.
• CAA (Computer Aided Accuracy) ensures computer-aided error correction of the dynamic deformations of the machine technology.

Machine Technology

• The granite machine table underscores the sturdy construction of this measuring machine.
• 4-side air bearings from Carl Zeiss ensure more stability and measuring precision.
• The controller, software, sensors and additional components are ZEISS products and are optimally matched to each other.
• The computer-independent standard control panel permits manual control via the joystick at a measuring location away from the computer. Speed during CNC operation is controlled via the overdrive knob.

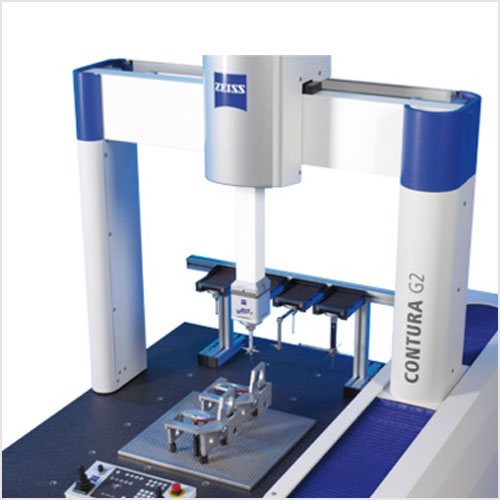

Contura G2 CMM is ideal for small and mid-sized companies who want the benefits of high-speed scanning. VAST scanning technology enables inspection at maximum speed with high-quality results. Process changes are detected at early stage, high production quality is ensured and rejected parts are reduced.

Ask for Price

Key Features:

• Offers a very robust machine design
• Ceramic guide ways in X and Z provide rigidity and protection against production-related environmental influences
• Air bearings on all axes for high stability at high travel speeds.
• Contura G2 CMM is ideal for small and mid-sized companies who want the benefits of high-speed scanning. VAST scanning technology enables inspection at maximum speed with high-quality results. Process changes are detected at early stage, high production quality is ensured and rejected parts are reduced.

Machine Technology:

• Can be configured with four different sensor models that offer the very high accuracy, specific to your application needs. It is also now available with Zeiss navigator sensor technology using the VAST XT Gold probe.
• CONTURA G2 direkt: entry-level scanning technology from Carl Zeiss; equipped with the VAST XXT scanning sensor that can measure a variety of work pieces.
• CONTURA G2 RDS: scanning of features in all angular positions with VAST XXT on the flexible ZEISS RDS articulating probe.
• CONTURA G2 DynaTouch: High-performance active touch single-point measuring system. DynaTouch uses the ZEISS measuring dynamic probe principle providing highly accurate and concentrated acquisition of points that is much more reliable, robust and reproducible than conventional systems.
• CONTURA G2 aktiv: self-centering probing, multi-point measurement of deeper features and reliable measurement of displaced features with size, form and position results also with high throughput thanks to the flexible VAST XT.
• CONTURA G2 navigator: compensates for the variations caused by dynamic influences, thus enabling a significant increase in scanning speed and shorter measurement time. It optimizes travel and measurement movements. Get superb VAST XT Gold probe mechanical properties, object-optimized CALYPSO software, and the scanning engine with look-ahead interpolators and full real-time dynamic correction.

Options:
CONTURA G2 can be configured with a variety of options:

• An integrated sensor changer rack for maximum reproducibility without recalibration.
• Our HTG version provides the same accuracy over a larger temperature range.
• Expansion of the Z measuring range by 200 mm with the
• U-shaped granite table option.

Production CMM from Zeiss

Ask for Price

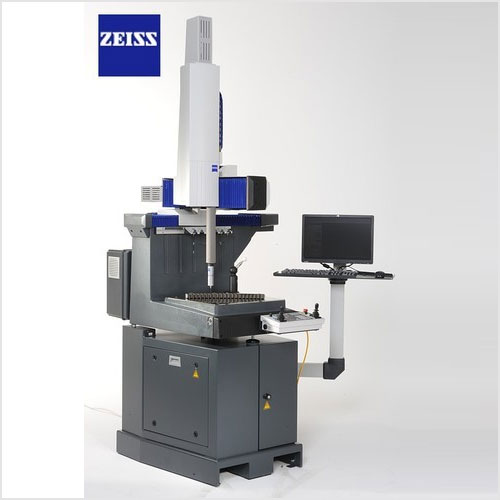

DuraMax is a CNC coordinate measuring machine and acts as a replacement for fixed gages, complex gages, and manual inspection equipment. This is the perfect measuring equipment for the shop floor. This machine can be used for everyday measurement tasks as it does not require gages, multi-location measuring devices and manual inspection equipment.

Some of its advantageous features include:

• Effortlessly integrates into any production environment
• No measuring lab required
• Small footprint and easy set-up
• Temperature stability up to +30ºC
• User-friendly CALYPSO CAD-based software
• Quick and accurate measurements with ZEISS VAST XXT scanning sensor
• Measuring range (in mm) 500 x 500 x 500
• Offers interface to Handysurf surface measuring instrument
• Does not require compressed air
• Faster, more accurate and reliable measuring
• The ability to measure quickly and accurately
• Flexibility to react to changes is a must in the machining and tooling industry
• More effective and economical than gages
• Flexible measurement plans through Object-oriented programming
• equipped standard configuration has ZEISS scanning
• Different stylus available
• Temperature stability up to +30ºC
• Passive vibration damping,
• Needs minimal space
• Easy to set up
• Easy to use
• Can be loaded from three sides
• Offers a practical stylus rack
• Optional base for better positioning
• Fast startup
• Needs no special installation or power requirements

Technology used in DURAMAX:

• Reliable drive system with completely covered guide ways,
• An integrated damping system
• Compensation of guide way errors (CAA corrected)
• It is a complete ZEISS system including the C99 controller
• VAST XXT scanning sensor
• CALYPSO measuring software
