Metallurgical Image Analyzer (MIAS)

Ask for Price

The Metallurgical Image Analysis System offered by us is finding solutions in metallography. It is a powerful integration of hardware and software that enables metallurgists to automatically capture images. It is a tool that provides enhancement, measurement, visualization, analysis and processing of image data.

We offer high-quality metallurgical image analysis system for our valuable clients.

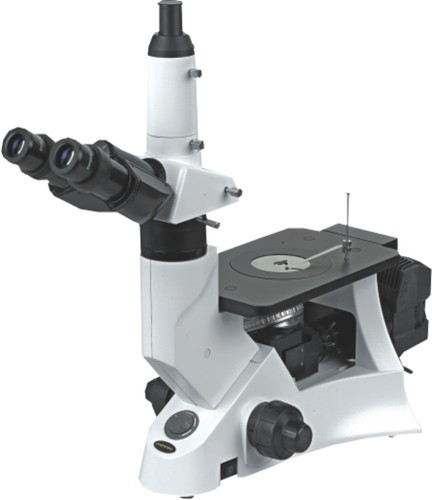

Inverted Trinocular Metallurgical Microscope

Model QS-17 At (Anti Fungus Coated)

Mechanical Body

• Axial focusing controls with large knobs, Pre-Focussing Lever and Tension Adjustment Ring.
• Inverted quadruple nosepiece revolves around ball bearings.
• A mechanical stage is 150 X 200 mm.
• The mechanical stage has low positioned co-axial controls on balls rolling on guideways.
• Hand rest on both sides

Trinocular Head: Trinocular Siedentopf head inclined at 30 degrees. Phototube for photomicrography, Diopter adjustment ring on the ocular tube, Interpupillary distance from 55 mm to 75 mm.

Illuminator:
Koehler’s illumination system with 6 V / 20 W halogen lamp, adjustable brightness.

EYEPIECE:
Wide-field 10X,(20mm)

Objectives:
Achromatic objective PL 10X, PL 20X, PL 40X, PL 100X( Oil)

MIAS - Metallurgical Image Analysis System Version 2.0

The system consists of : -
2 MP USB Camera Model DIGIEYE 210 With C-Mount Lens to be mounted on CCD for Met Microscope

Image Analysis Software

• Cut, Copy and paste
• On keyboard or mouse with zoom preview
• Crop, duplicate, restore
• Resize
• Flood fill or spray with selected color at the selected portion.
• Grid creation; 5x5, 10x10 & 100x100 grids (or cells)
• Annotation tool text, line, square, circle, arrow with node control and provision to change the color thickness of the selected tool.
• Eraser to erase annotation only not the original image.

Measurements:

• Count and Classification
• Particle Measurements
• Phase Analysis
• Nodules
• Porosity
• Coating Thickness
• Decarburization
• Grain Size
• Non-Metallic Inclusion
• Graphite Flakes

Report:

• Own Report Tool no third-party control used.
• A printout with original image processed image & results.
• Saving, retrieving and deletion of reports.
