Video Measuring System - Manual Models

• Aluminum alloy Vision Measuring System
• Manual 2D Vision Measurement Machine
• Step Zoom Lens
• Travel: 200 X 100 X 80 mm
• Scale resolution: 0.001 mm (1 micron)
• Repeatability: +/- 0.003 mm (3 microns)
• Accuracy: 3 microns + (L/200 in mm)
• Software: OVM MUMA
• Manual control of light source with external control
• Machine weight: 26 KG

Ask for Price

Download Brochure

Yes! I am Interested

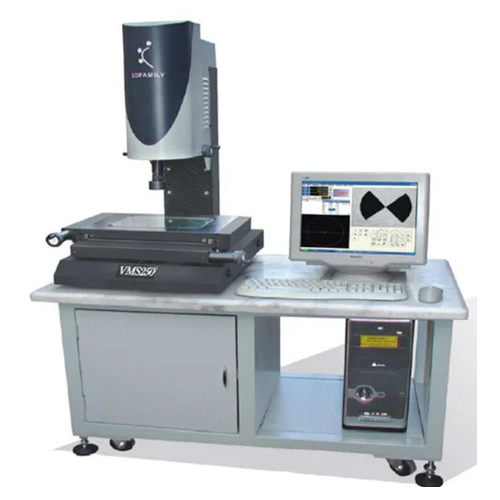

• Granite base and stand
• Manual 2D Vision Measurement Machine
• Laser indicator can point current measuring position accurately
• Measure range (mm): 250X150X200, 300X200X200, 400X300X200
• Z axis adopts clump weight, easily to use; the Z axis structure is stabled without being distorted
• Scale resolution: 0.001 mm (1 micron)
• Repeatability: +/- 0.002 mm (2 microns)
• Accuracy: 3 microns + (L/200 in mm)
• Control of light source through PC
• Software: OVM Lite

Ask for Price

Download Brochure

Yes! I am Interested

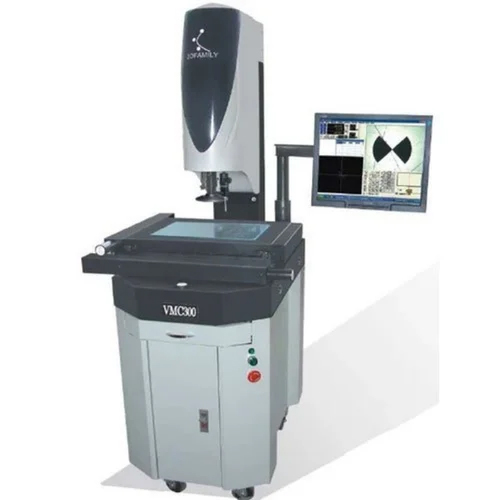

• Granite base and stand
• Manual 2D Vision Measurement Machine
• Can be upgraded to 3D with addition of Touch Probe Measure range (mm): 250X150X200, 300X200X200, 400X300X200
• Scale resolution: 0.001 mm (1 micron)
• Repeatability: +/- 0.002 mm (2 microns)
• Accuracy: 3 microns + (L/200 in mm)
• Laser indicator can point current measuring position accurately
• Can do height measurement with Z axis optical ruler
• Software: OVM Lite

Ask for Price

Download Brochure

Yes! I am Interested

• Granite base and stand
• Manual 2D Vision Measurement Machine
• Can be upgraded to 3D with addition of Touch Probe
• Measure range (mm): 250X150X200, 300X200X200, 400X300X200
• Scale resolution: 0.001 mm (1 micron)
• Repeatability: +/- 0.002 mm (2 microns)
• Accuracy: 3 microns + (L/200 in mm)
• Z axis front transmission system is to operate machine easily
• Laser indicator can point current measuring position accurately
• Can do height measurement with Z axis optical ruler
• Software: OVM

Ask for Price

Download Brochure

Yes! I am Interested

• Granite base and stand
• Manual 2D Vision Measurement Machine
• Can be upgraded to 3D with addition of Touch Probe
• Measure range (mm): 250X150X200, 300X200X200, 400X300X200
• Scale resolution: 0.001 mm (1 micron)
• Repeatability: +/- 0.002 mm (2 microns)
• Accuracy: 2.5 microns + (L/200 in mm)
• Laser indicator can point current measuring position accurately
• Programmable 4-quadrant ring surface light with the coaxial profile light
• Can do height measurement with Z axis optical ruler
• Software: OVM

Ask for Price

Download Brochure

Yes! I am Interested

• Granite base and stand
• Manual 3D Vision Measurement Machine with RENISHAW touch probe
• Measure range (mm): 250X150X200, 300X200X200, 400X300X200
• Scale resolution: 0.001 mm (1 micron)
• Repeatability: +/- 0.002 mm (2 microns)
• Accuracy: 3 microns + (L/200 in mm)
• Z axis front transmission system is to operate machine easily
• Laser indicator can point current measuring position accurately
• Software: OVM

Ask for Price

Download Brochure

Yes! I am Interested

• Granite base and stand
• Manual 3D Vision Measurement Machine with RENISHAW touch probe
• Measure range (mm): 250X150X200, 300X200X200, 400X300X200
• Scale resolution: 0.001 mm (1 micron)
• Repeatability: +/- 0.002 mm (2 microns)
• Accuracy: 2.5 microns + (L/200 in mm)
• Laser indicator can point current measuring position accurately
• Programmable 4-quadrant ring surface light with the coaxial profile light
• Software: OVM
